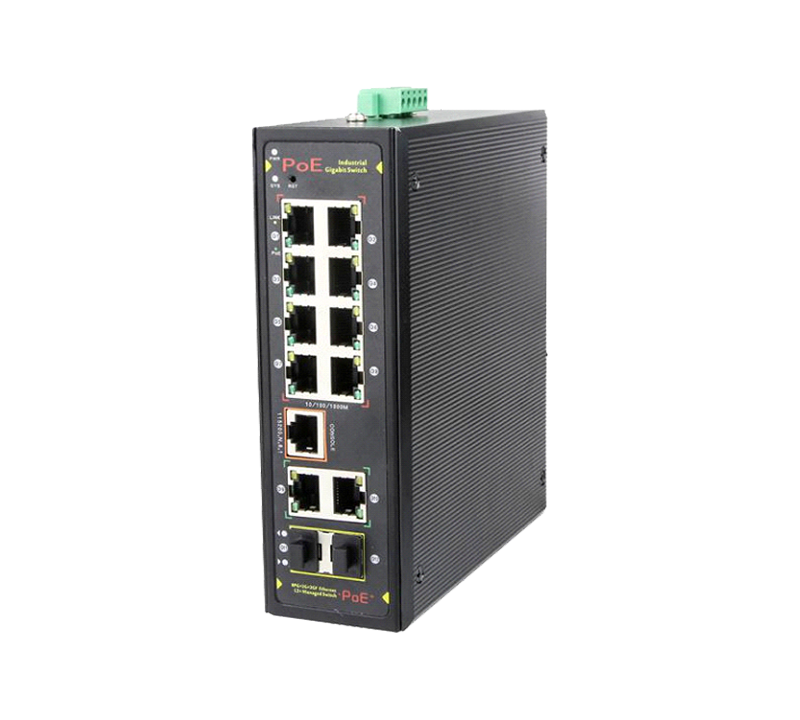

10-port Full Gigabit Industrial PoE Switch (IPS33108P Series)

The IPS33108P series is a full gigabit industrial PoE switch. It has 10*10/100/1000Base-T RJ45 ports. Port 1-8 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 30W, and the maximum PoE output power of the host is 120W (at-240W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera,industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.

Unmanaged mode, plug, and play, no configuration, easy to use.

FEATURE

  • Gigabit wire speed forwarding
  • All series supports full gigabit Ethernet ports, high speed and high bandwidth connection to meet the needs of various scenarios.
  • Support non-blocking wire-speed forwarding.
  • Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
  • Powerful port lightning protection, wide voltage input
  • Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;
  • Industrial dual power input
  • DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V.
  • Intelligent PoE power supply
  • 10*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
  • IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
  • Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
  • Stable and reliable
  • Low power consumption, No fan, aluminum casing.
  • CCC,CE, FCC, RoHS.
  • The user-friendly panel, it can show the device status through the LED indicator of PWR,Link, PoE.

TECHNICAL SPECIFICATION

Model IPS33108P IPS33108P-at
Interface Characteristics
Fixed Port 10*10/100/1000Base-T PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports(Data)
2 set of V+, V- redundant DC power interface (5P Phoenix terminal)
Ethernet Port Port 1-10 support 10/100Base-TX,auto-sensing, Full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-T: Cat5e or later UTP(≤100 meter)
Chip Parameter
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 20Gbps
Forwarding Rate@64byte 14.88Mpps
MAC 8K
Buffer Memory 2M
Jumbo Frames 9.2K
LED Indicator Power: PWR (green), network ;Link (yellow), POE: PoE (green), Speed: 1000 (green)
PoE & Power
PoE Port Port 1 to 8 IEEE802.3af/at @ POE
Power Supply Pin Defaul :1/2 (+), 3/6 (-)
Max Power Per Port 30W; IEEE802.3af/at
Total PWR / Input Voltage 120W/48VDC 240W/48VDC
Power Consumption Standby <8W, Full load<120W Standby<10W, Full load<240W
Working Voltage 48-57VDC; 5P industrial Phoenix terminal, support anti-reverse protection.
Power Supply No, optional 48V/120W or 48V/240W industrial power supply
Physical Parameter
Operation TEMP / Humidity -40~+80°C;5%~90% RH Non condensing
Storage TEMP / Humidity -40~+85°C;5%~95% RH Non condensing
Dimension (L*W*H) 145*134.5*47.5mm
Net /Gross Weight <1.0kg / <1.2kg
Installation Desktop, DIN rail
Certification & Warranty
Lightning Protection / Protection Level Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022):Class A
IEC61000-6-2(Common Industrial Standard)
Mechanical Properties IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)
Certification CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;
Warranty 5 years , lifelong maintenance.
